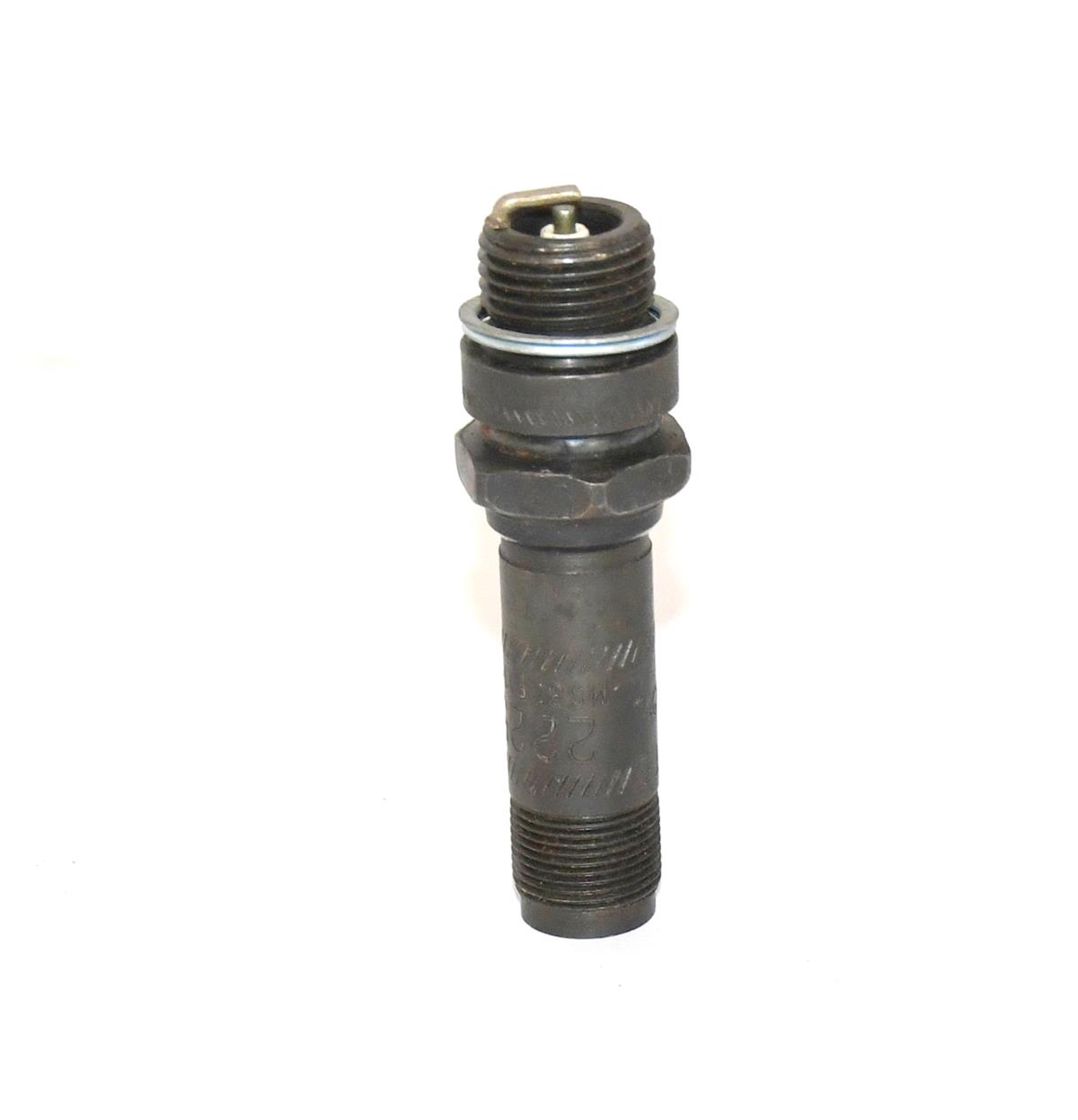

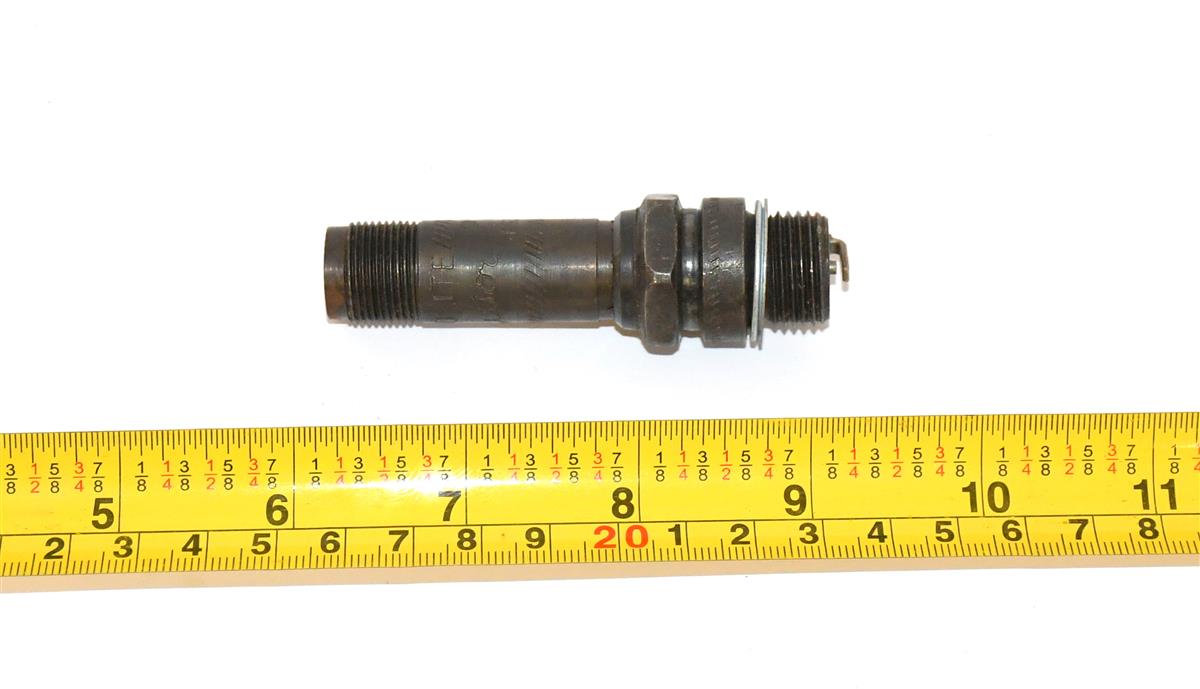

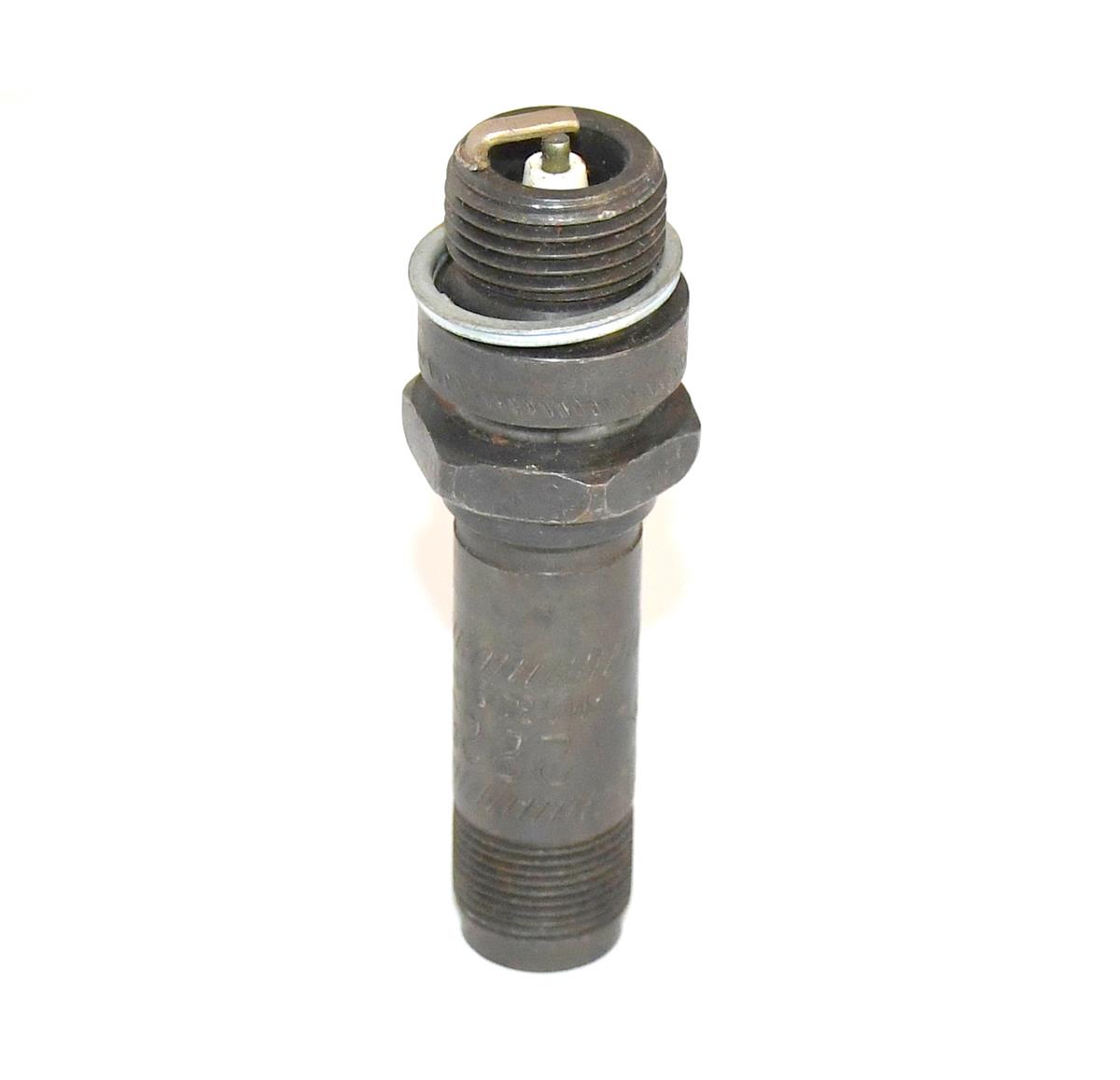

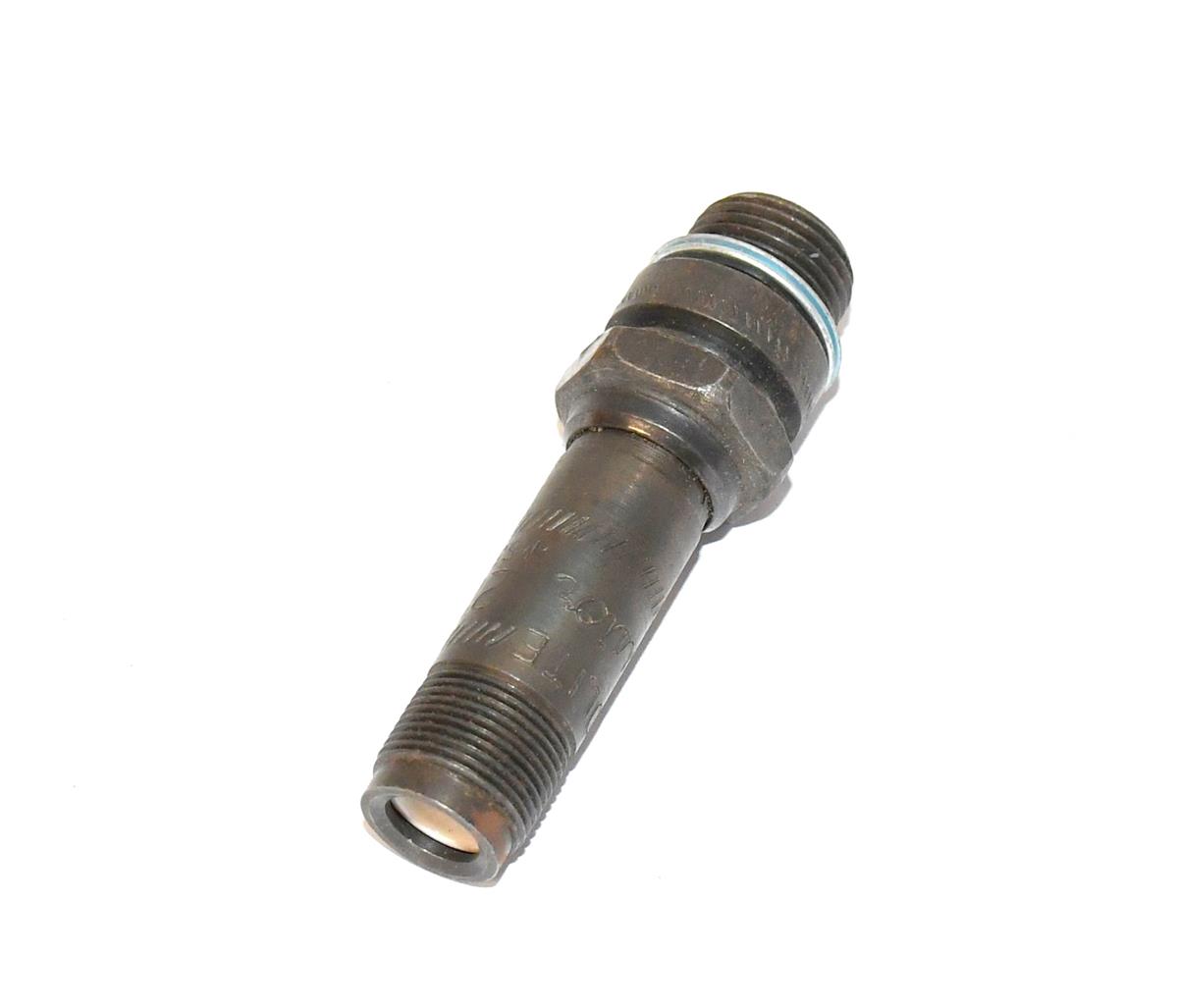

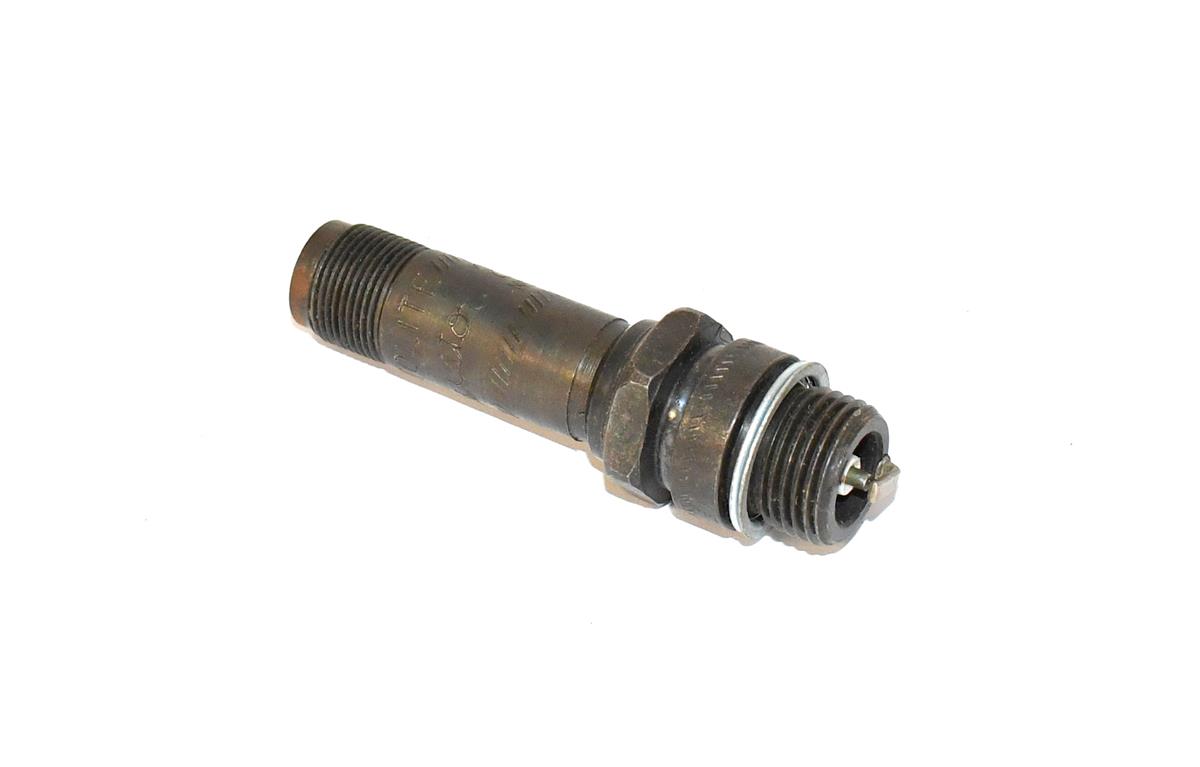

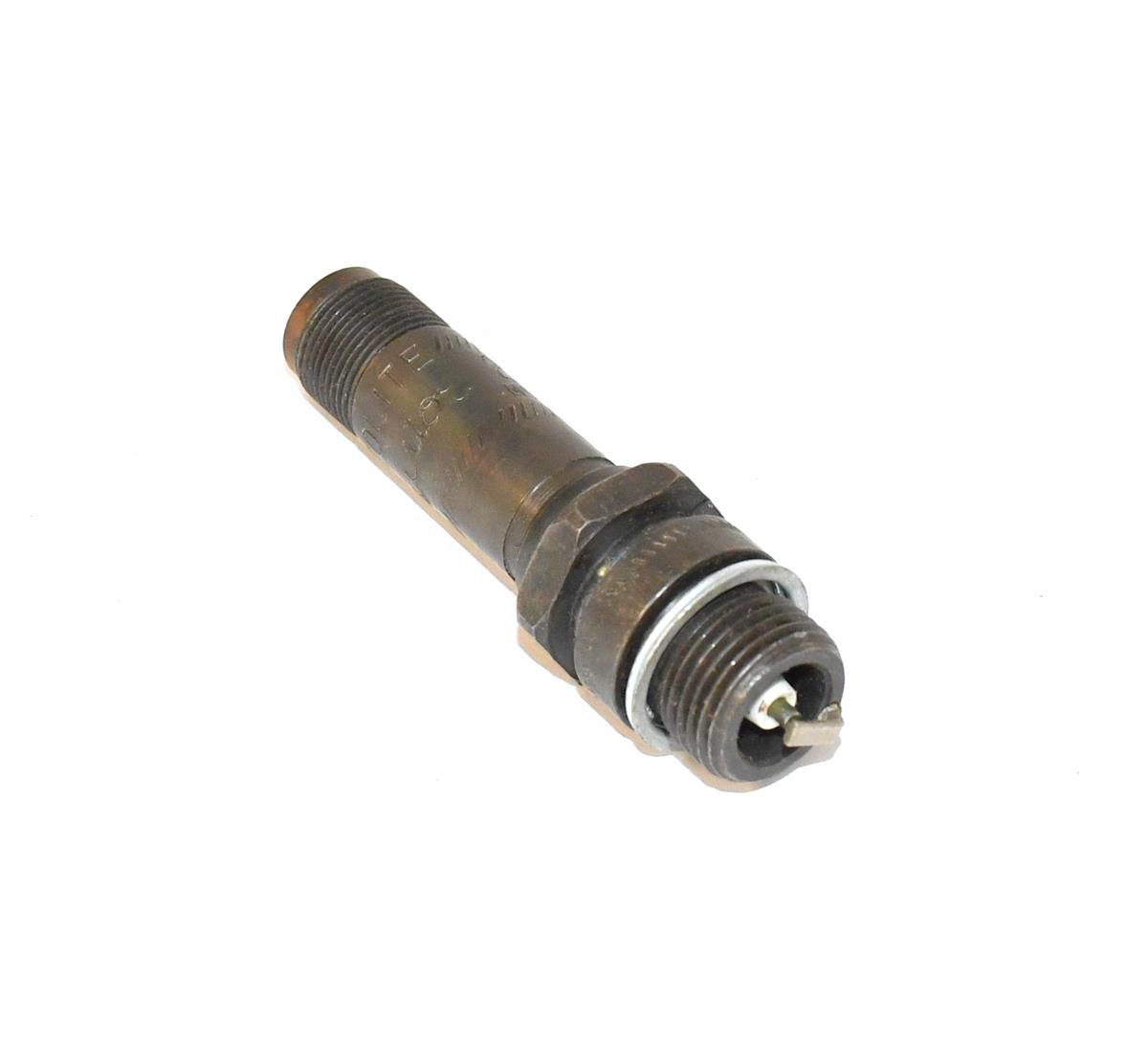

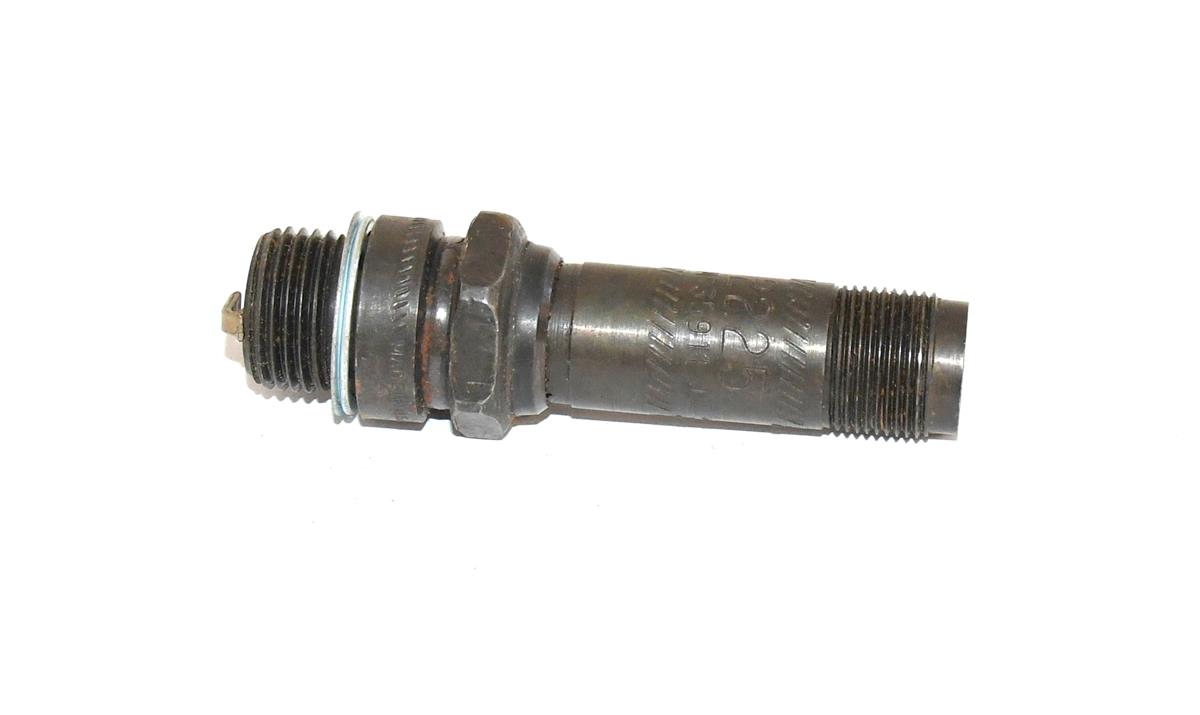

Autolite Spark Plug Resistor Shielded Aircraft Application
- DC Resistance in OHMS is 10000
- Reach Length is 0.500 inches
- Width Across Flats is 0.875 inches
- Height above Mounting Surface is 2.781 inches
- Top to Terminal Contact Distance is 1 inch and 1.050 inches
- Shield Thread Length is 0.375 inches
- Barrel Inside Diameter is 0.570 inches
- Terminal Sleeve Inside Diameter is 0.378 inches
Fits: Special Applications
Aircraft: Eagle F-15 , F-16 , Thunderbolt II , T-37 , Phantom F-4 , Hercules C-130
Helicopter HH-60
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
