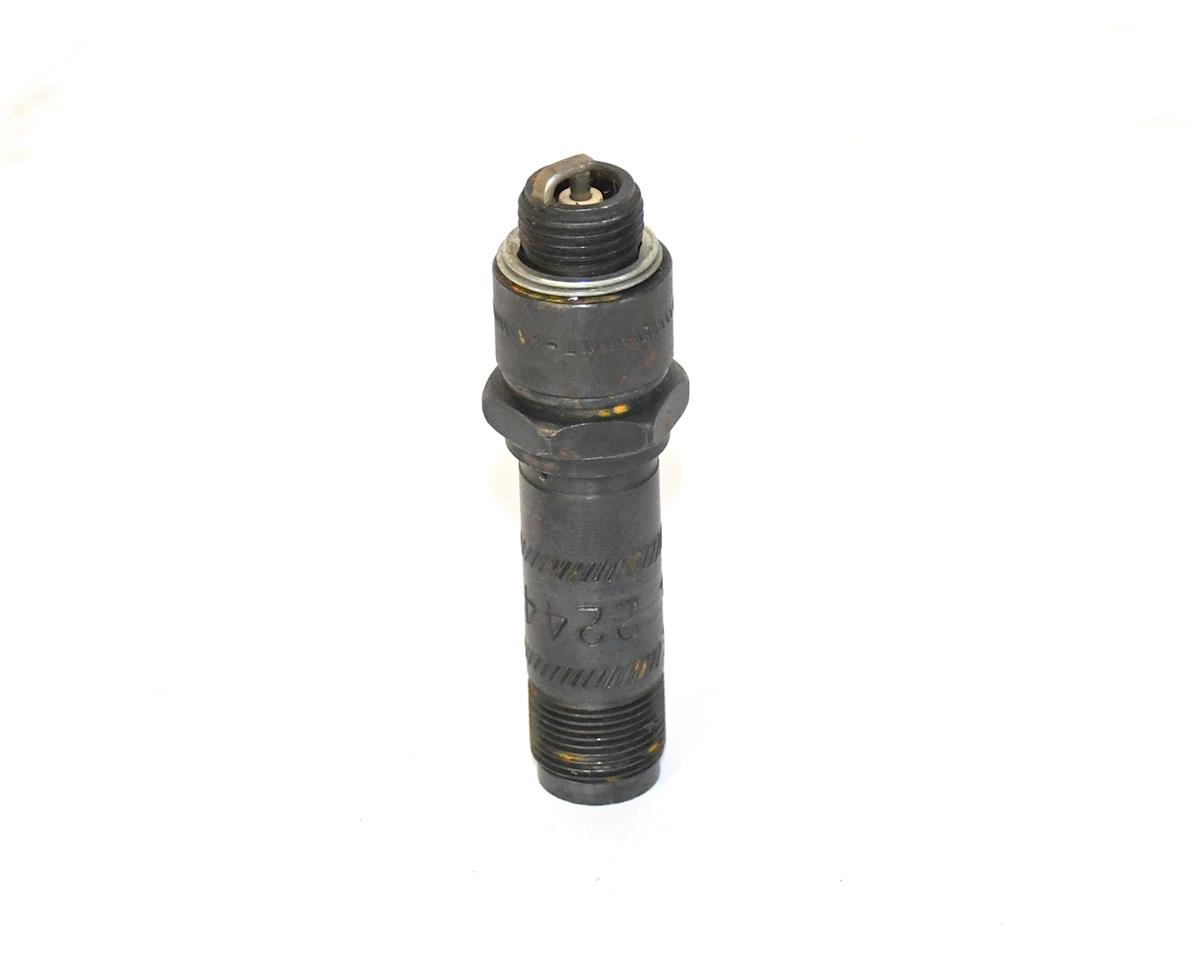

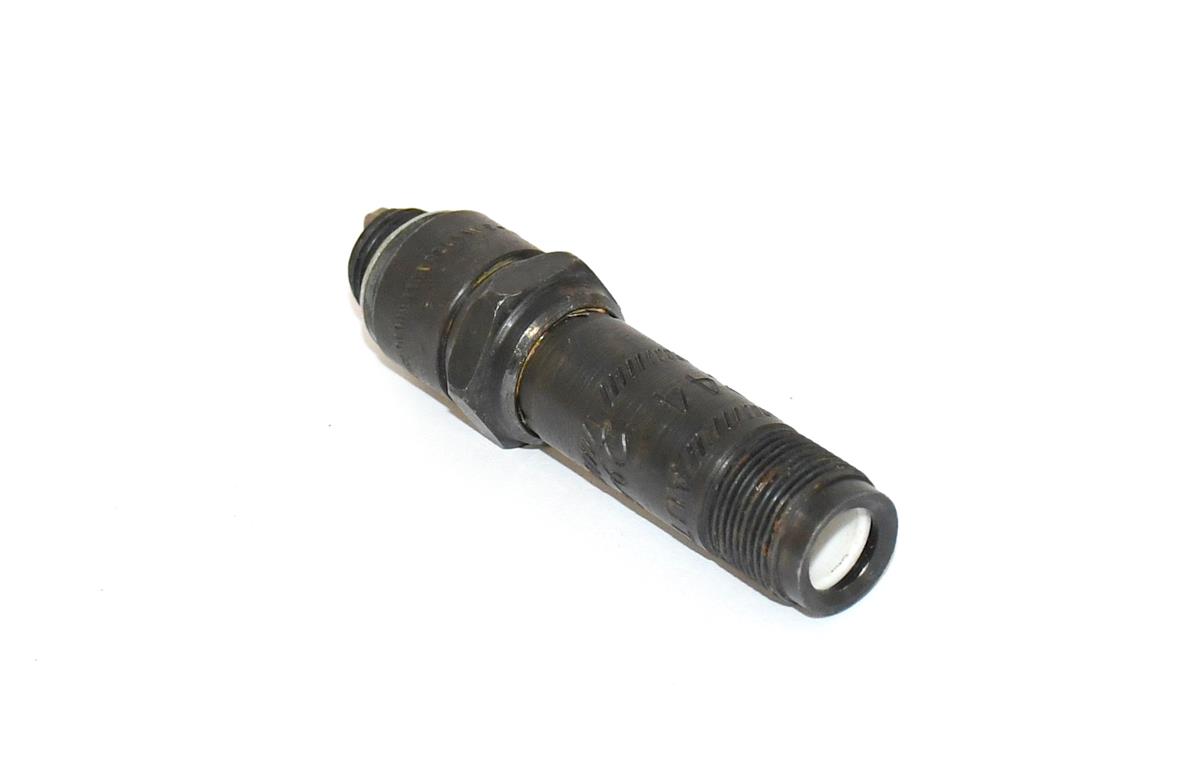

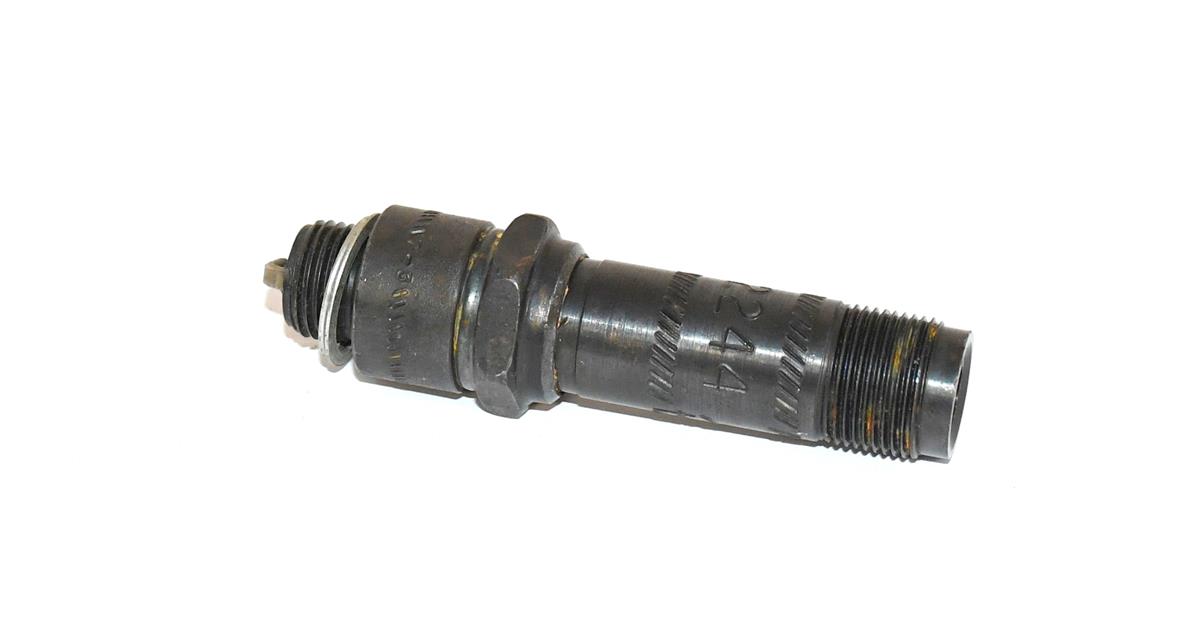

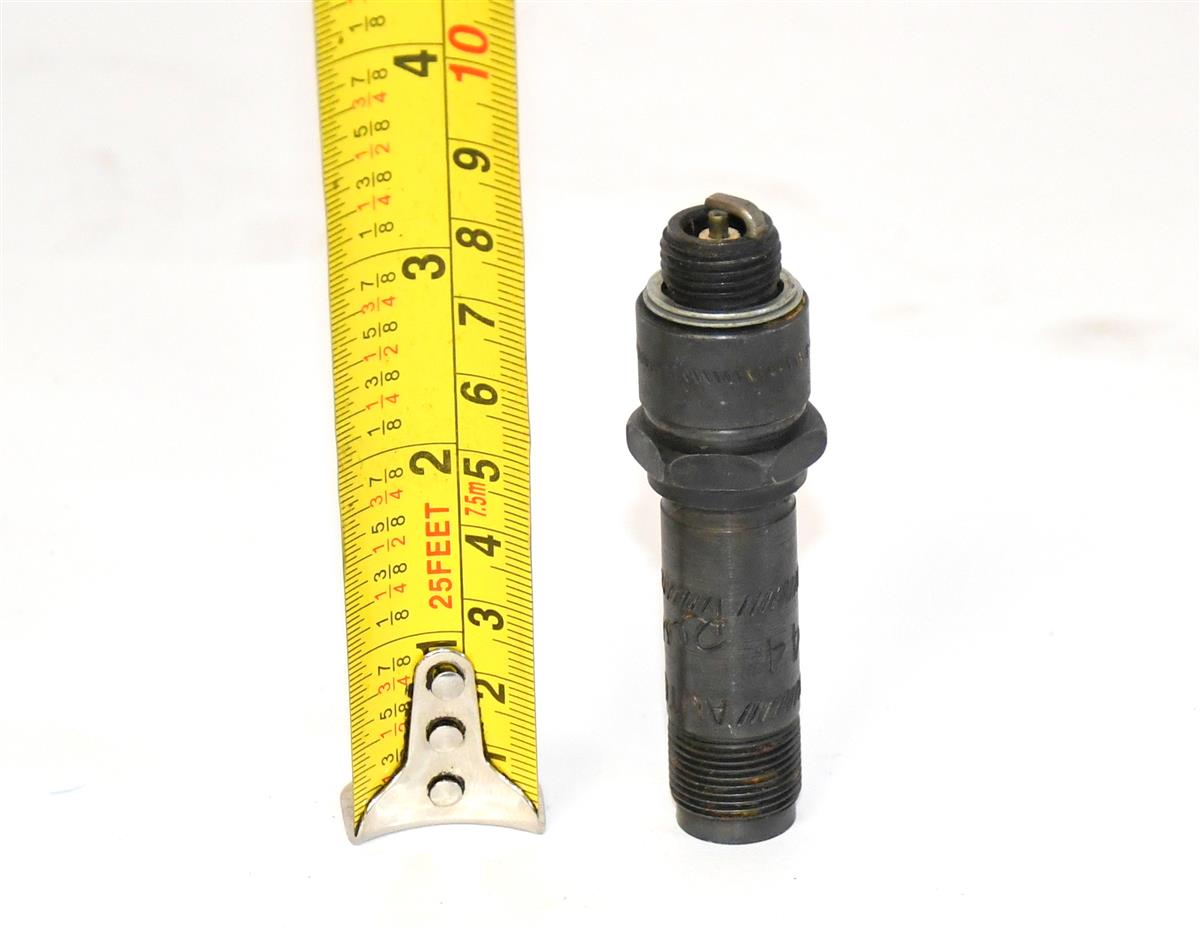

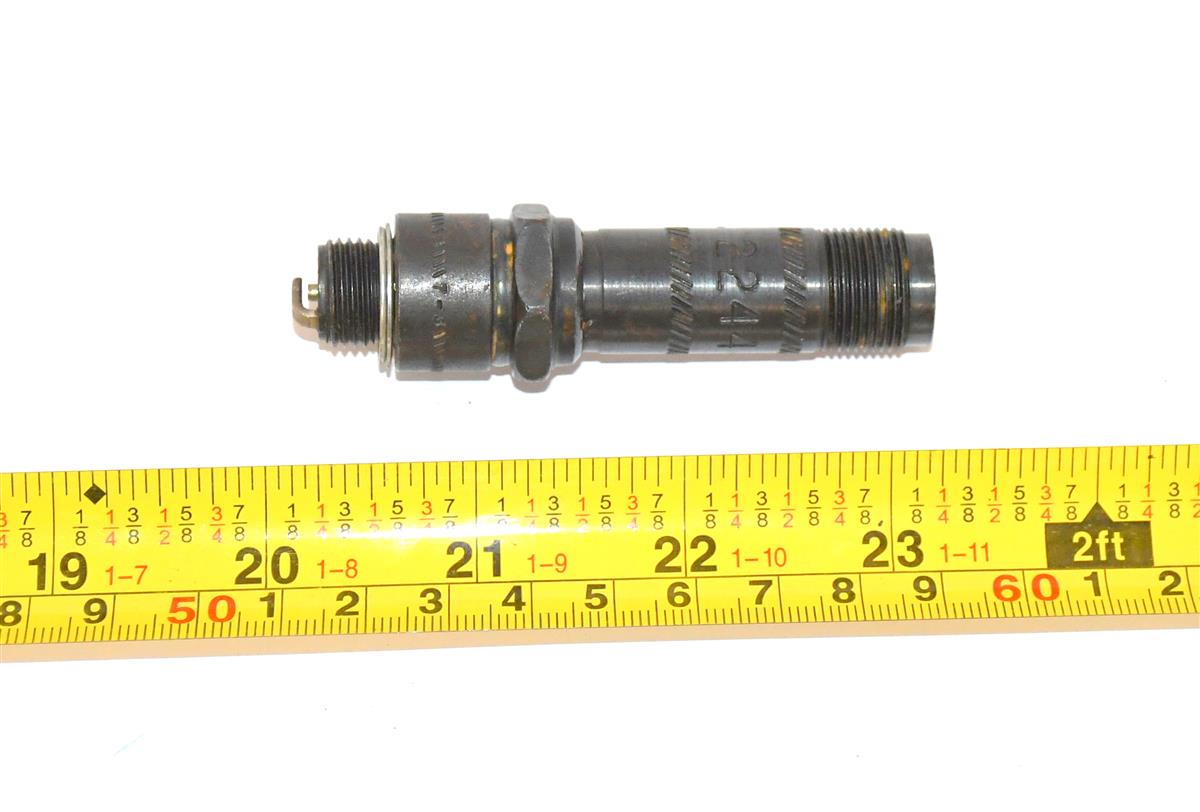

Autolite Spark Plug Resistor Shielded Aircraft Application
- DC Resistance Rating in OHMS is 10000
- Reach Length is 0.375 inches
- Width Across Flats is 0.812 inches
- Seat Major Diameter is 0.8125 inches
- Height Above Mounting Surface is 2.781 inches
- Top to Terminal Contact Distance is 1 inch
- Top to Shield Thread Distance is 0.125 inches
- Shield Thread Length is 0.375 inches
- Barrel Inside Diameter is 0.468 inches
- Terminal Sleeve Inside Diameter is 0.375 inches
Fits: Special Applications
Aircraft: Phantom F-4 , Stratofortress B-52 , Hercules C-130 , Eagle F-15 , F-16
Helicopter: Iroquois HH/UH-1
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
